Full automatic toilet paper single-roll packaging machine and multi-row packaging machine

Short Description:

Full automatic single roll packaging machine

Adopt MCU for master control circuit, display on LCD screen, control by the inverter, excellent person-computer interface, easy to pack. And the length of product adopt double frequency converter, stepless speed change, various range adjustment,, automatic clear up the packing product, and make it enter packaging machine. This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing. It suitable for many kind of wrapping material.

multi-row packaging machine

1.The automatic packing machine integrates bag-stretching, bag-filling, sealing and cutting into one, with blowing qigong energy,it can blow off the tail material, the packing sealing effect is beautiful and neat.

2.PLC computer programming control, touch screen display parameters, easy to set, more accurate temperature control.

Send email to us

Product Detail

Product Tags

Product Description

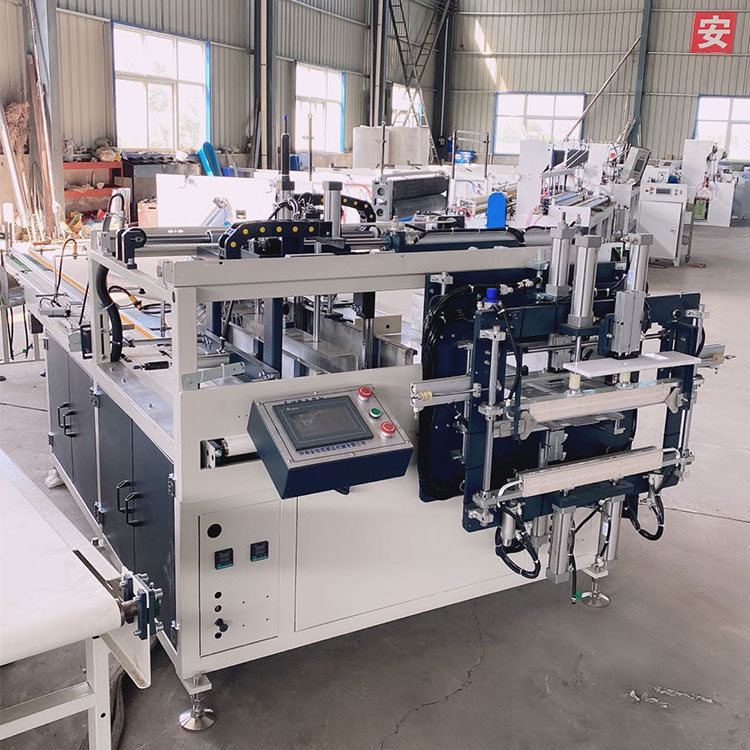

Young Bamboo Toilet Paper Roll Packing Machine is used for packing 6, 10, 12 paper rolls and can be connected to automatic cutting machine to realize automatic sealing.

1.Toilet Paper Roll Packing Machine adopt advanced PLC computer programming control, LCD text display parameters, easy to set, water cooling control make temperature control more accurate, effective protection of heating wire and high temperature resistant tape.Servo motor pushes into bag, positioning more accurately

2. Packaging speed: 10-20 bag/min (related to the worker bagging speed)

3. Suitable for toilet paper with core or without core packing and sealing

4. Reasonable structure, stable performance, strong material and durable.The main parts of the control parts are imported high quality components, the rest is the national standard quality components.

Working Process

Product Paramenters

Full automatic multi-row packaging machine

Capacity	10-25 bags/min
Voltage	380 V,50 Hz
Power	5.5 KW
Air pressure	0.5-0.7 Mpa
Max packing size	660240150 mm
Min packing size	22017080 mm
Size	450020001800 mm
Weight	900 KG

Full automatic single-roll packaging machine

Type	YB-350X
Film width	Max 350mm
Bag length	65-190 or 120-280mm
Bag width	50-160mm
Product height	Max 65mm
Film roll diameter	Max.320MM
Packaging rate	40-230 bag/min
Power	220V 50/60Hz 2.6KW
Machine size	(L)4020 x (W)720 x (H)1320mm
Machine weight	about 550kg

Product Features

Toilet Paper Packing Machine Application

1. The toilet paper packing machine usually connected with toilet paper machine.

2. The toilet paper packing machine is suitable for various kinds of packages of kinds of size toilet paper, it is packing , sealing and cutting all could done in one set of machine.

Machine Package Material

Package material and bags: heat sealing film,like PE/OPP+PE/PET+PE/PE+white PE/PE and various composite materials.

Machine Main Features

1. First sense and work, so that workers can use it more secure.

2. It push toilet roll, napkin or else products into bag, seal the bag, and cut the wasted material.
3. Use PLC control, can set parameter on LCD text display.
4. Need only one worker to operate it.
5. Use strong parts. Stable function.
