The N fold hand towel machine use to fold the hand towel or wet-strength paper into N-shaped after embossing, cutting and folding on the rollers. With vacuum folding system, automatic-stacking unit, this machine features in high speed, and counting is precious.
The folding of product is "N" type folding and you can draw it one by one .This kind of towel paperis used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.
Function and character:
1.Count automatically and output in order.
2.Adopt screw turning knife to cut and vacuum absorption to fold.
3.Adopt stepless adjusting speed to roll which may fix different tension of raw paper.
4.Control pneumatic with electric convenient to operate.
5.Capable of forming complete set of rolling figure unit with clear look.
6.Have a wide range of production width for user to sale conveniently.
Model
|
YB-2L/3L/4L/5L/6L
|
|||
Finished Products Size
|
230L*230±2MM
|
|||
Raw Material Width
|
460mm
|
690mm
|
920mm
|
1150mm
|
Raw Material Core Diameter
|
76.2mm
|
|||
Speed
|
0-100m/min (depending on the machine model)
|
|||
Power
|
Frequency conversion speed regulator
|
|||
Programmable controller
|
PLC computer controller
|
|||
Folding Type
|
Vacuum suction N fold
|
|||
Transmission unit
|
Timing Belt
|
|||
Counter
|
Ink Marked
|
|||

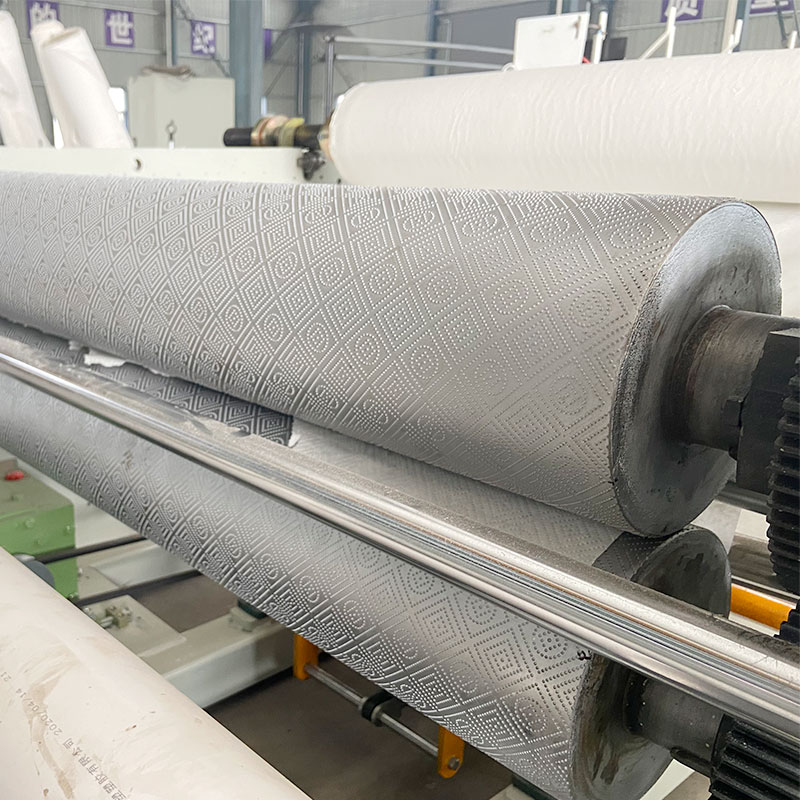

Embossing Unit
|
Steel to steel
|
|||
Slitting Unit
|
Pneumatic dot slitting
|
|||
Pneumatic System
|
3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
|
|||
Total Power
|
11kw
|
15kw
|
15kw
|
22kw
|
Dimension
|
4000*(1700-2500) *1900mm ,Depend on the size and configure
|
|||
weight
|
2-5 tons, Depend on the size and configure
|
